Disposition of the MIGHTY WURLITZER

Rudolph Wurlitzer Company Type 250 SPECIAL, Opus 2064

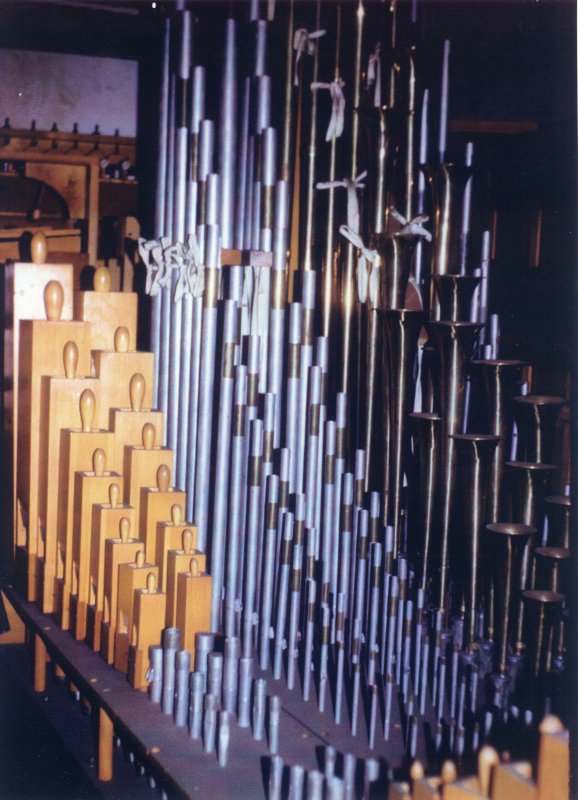

pipes in the solo champer

View to the pipes in the Solo Chamber


Accompainment (1st manual)
Contra Viol 16'   Burdon 16'   Lieblich Burdon 16'
Vox Humana 16'
Tuba Horn 8'   Diaphonic Diapason 8'   Tibia Clausa 8'
Clarinet 8'   Orchestral Oboe 8'   Gamba 8'
String 8'   String Celeste 8'   Viol d'Orchestre 8'
Viol Celeste 8'   Oboe Horn 8'   Quintadena 8'
Flute 8'   Lieblich Gedackt 8'   Vox Humana 8'
Octave 4'   Piccolo 4'   Viol d'Orchestre 4'
Viol Celeste 4'   Flute 4'   Flute (Tibia) 4'
Cox Humana 4'
Twelth 2 2/3;'
Piccolo 2'   Piccolo 2'
Marimba (re-it)     Harp     Chrysoglott
Snare Drum     Tambourine     Castanets
Chinese Block     Tom Tom     Sand Block
Solo To Accompainiment Coupler

Great (2nd manual)
Ophicleide 16'   Diaphone 16'   Tibia Clausa 16'
Clarinet 16'   Contra Gamba 16'   String 16'
Contra Viol 16'   Bourdon 16'   Lieblich Bourdon 16'
Vox Humana 16'
Trumpet 8'   Tuba Horn 8'   Diaphonic Diapason 8'
Tibia Clausa 8'   Clarinet 8'   Orchestral Oboe 8'
Gamba 8'   String 8'   String Celeste 8'
Viol d'Orchestre 8'   Viol Celeste 8'   Flute 8'
Lieblich Gedackt 8'   Vox Humana 8'
Clarion 4'   Octave 4'   Piccolo 4'
Viol d'Orchestre 4'   Viol Celeste 4'   Flute 4'
Lieblich Flute 4'
Twelth 2 2/3'   Twelth 2 2/3'
Piccolo 2'   Piccolo 2'
Tierce 1 3/5'
Marimba (re-it)     Harp     Chathedral Chimes
Sleigh Bells     Xylophone     Glockenspiel
Bells (re-it)     Chrysoglott     Sub Octave
Unison Off     Octave
Solo To Great Coupler

Orchestral (3rd manual)
Ophicleide 16'   Diaphone 16'   Tibia Clausa 16'
Contra Gamba 16'   Bourdon 16'
Trumpet 8'   Tuba Horn 8'   Diaphonic Diapason 8'
Tibia Clausa 8'   Clarinet 8'   Orchestral Oboe 8'
Gamba 8'   String 8'   String Celeste 8'
Viol d'Orchestre 8'   Viol Celeste 8'   Oboe Horn 8'
Quintadena 8'   Flute 8'   Lieblich Gedackt 8'
Clarion 4'   Octave 4'   Piccolo 4'
Gambette 4'   Viol d'Orchestre 4'   Viol celeste 4'
Flute 4'   Lieblich Flute 4'
Piccolo (Tibia) 2'   Piccolo 2'   Piccolo 2'
aaaa vvv'   aaaaa vvv'   aaaaa vvv'
Chathedral Chimes     Xylophone     Glockenspiel
Bells (re-it)

Solo (4th manual)
Ophicleide 16'   Tibia Clausa 16'   Contra Gamba 16'
Trumpet 8'   Tuba Horn 8'   Diaphonic Diapason 8'
Clarinet 8'   Orchestral Oboe 8'   Gamba 8'
String 8'   String Celeste 8'   Oboe Horn 8'
Quintadena 8'
Clarion 4'   Octave 4'   Piccolo 4'
Gamblette 4'

Pedal
Ophicleide 16'   Diaphone 16'   Tibia Clausa 16'
Contra Gamba 16'   Bourdon 16'   Lieblich Bourdon 16'
Tuba Horn 8'   Octave 8'   Tibia Clausa 8'
Clarinet 8'   Gamba 8'   String 8'
String Celeste 8'   Flute 8'   Lieblich Gedackt 8'
Flute 4'
Tympani     Tympani (Roll)     Bass Drum
Kettle Drum     Snare Drum     Crash Cymbal
Gong
Accompainiment To Pedal Coupler   Great To Pedal Coupler   Orchestral To Pedal Coupler
Solo To Pedal Coupler

Accompainiment Second Touch
Tuba Horn 2nd 8'   Tibia Clausa 2nd 8'   Clarinet 2nd 8'
Chimes 2nd   Xylophone 2nd   Seigh Bells 2nd
Bird 2nd
Solo To Accompaniment 2nd   Solo To Accompaniment (Pizzicato)

Great Second Touch
Ophicleide 2nd 16'   Tibia Clausa 2nd 8'   Clarinet 2nd 8'
Solo To Great 2nd   Solo To Great (Pizzicato)

Pedal Second Touch
Diaphone 2nd 16'   Ophicleide 2nd 16'

Tremulants
Main Tremulant
Solo Tremulant
Orchestral Tremulant
Tibia Clausa Tremulant
Vox Humana Tremulant
Tuba Horn & Diapason Tremulant

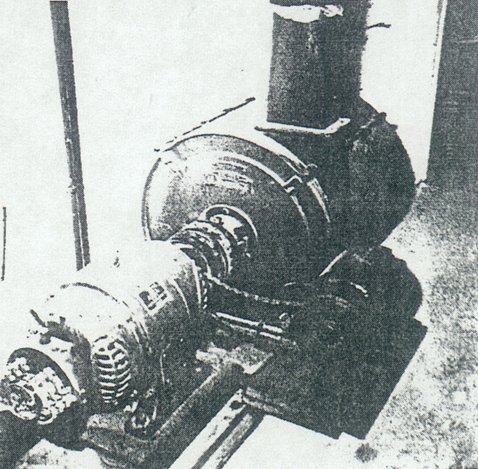

Blowers
Two 5hp Discus Blowers (only one used ine the museum)
